Caterpillar C9 HEUI Pump: Part Numbers, Pressure Problems & No-Start Diagnosis
A Caterpillar C9 can have fuel in the tank, a healthy starter and fully charged batteries — and still refuse to fire.
That can be confusing if you're used to older mechanical diesel engines.
You crack open the usual checks.
Fuel is getting to the engine.
The starter is turning it properly.
Nothing obvious looks wrong.
Yet the C9 keeps cranking.
On a HEUI-equipped C9, there is another side of the injection system that has to be considered:
high-pressure engine oil.
That's what makes troubleshooting these engines different.
The injectors don't depend on diesel fuel pressure alone. The HEUI system uses pressurized engine oil to hydraulically actuate the injectors.
So when somebody says:
“We've got fuel, but the C9 still won't start.”
the next question isn't necessarily:
“Should we change the fuel pump?”
It may be time to look at the injector-actuation side of the system.
For the applicable C9 marine configuration, an important hydraulic injector pump reference is:
384-0678 / 3840678
with the Cat Reman alternative:
20R-1636 / 20R1636
For other C9 components, visit our Caterpillar C9 Marine Engine Parts page.
If you're trying to identify an existing pump, send us the engine and pump information.
Why the C9 HEUI System Is Different
On an older mechanical diesel, a fuel problem often keeps you focused almost entirely on the fuel side.
The C9 HEUI system makes you think differently.
Engine oil isn't only there to lubricate the engine.
Part of the HEUI system uses engine oil at high pressure to actuate the injectors.
That means several things have to come together before the engine can run correctly.
You need:
Fuel
Engine oil
Sufficient injector-actuation pressure
Working HEUI injectors
Correct electronic control
Take one of those away and the engine can behave very differently.
That's why simply seeing fuel at the engine doesn't prove that the injection system is ready to fire.
A C9 That Cranks but Doesn't Start
Imagine the vessel has been sitting overnight.
The engineer hits the starter.
The engine turns normally.
Five seconds.
Ten seconds.
Still nothing.
The immediate temptation is to start replacing fuel-system components.
Before doing that, look at what the engine is actually telling you.
Is the HEUI system building enough injector-actuation pressure during cranking?
That's a much more useful question.
If pressure isn't developing properly, then you can begin investigating why.
The hydraulic injector pump may be involved.
But there could also be a pressure-control problem, sensor issue, internal leakage or another fault elsewhere in the system.
This distinction matters.
A low-pressure reading is evidence of a system problem.
It is not automatically proof of a failed pump.
The Morning Start Is Fine. The Hot Restart Isn't.
This is a particularly interesting C9 complaint.
The engine starts immediately in the morning.
You run for several hours.
The vessel arrives alongside.
The engine is shut down.
Twenty minutes later, somebody tries to restart it.
Now it cranks and cranks.
Leave it long enough to cool and suddenly it starts again.
When a HEUI engine behaves differently hot and cold, the temperature change itself becomes useful diagnostic information.
Hot engine oil is thinner.
Component clearances change.
Internal leakage that wasn't significant when the oil was cold may become more noticeable when everything reaches operating temperature.
That's why a hot no-start shouldn't automatically produce a purchase order for a new HEUI pump.
First find out what happens to injector-actuation pressure while the engine is hot and cranking.
That tells you much more.
The Oil Dipstick Matters More Than You Might Think
This is one of the simplest checks on the entire engine.
Before reaching for diagnostic equipment, check the engine oil.
On a HEUI system, oil condition isn't unrelated to injection.
It's part of the conversation.
Check:
- Oil level
- Oil condition
- Correct oil grade
- Oil pressure
- Maintenance history
If the oil level is wrong or the oil condition is questionable, deal with that information before blaming an expensive hydraulic component.
Sometimes the basic checks really are the useful checks.

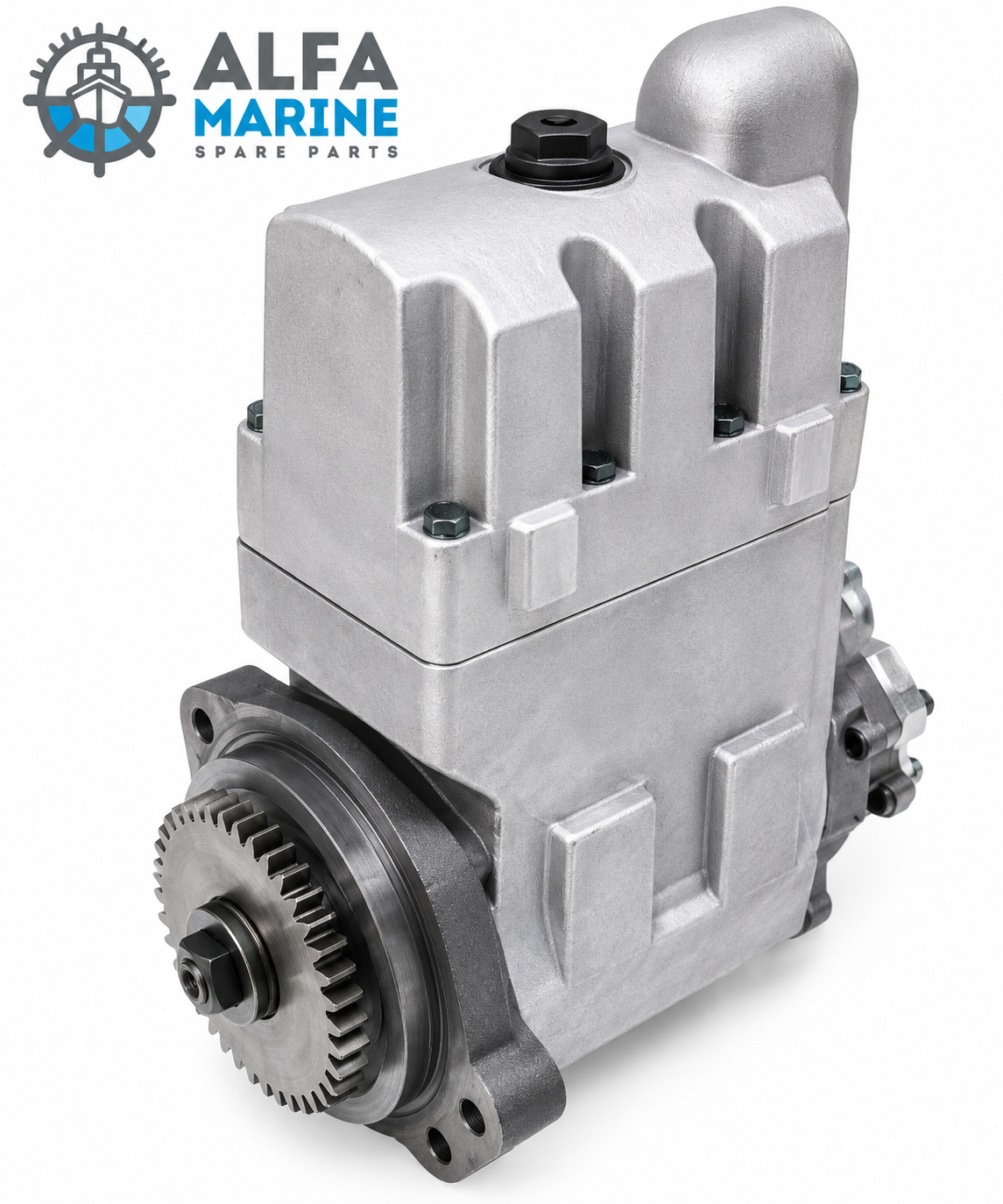

Caterpillar C9 HEUI Pump 384-0678 / 3840678
Now to the part number.
An important hydraulic injector pump reference for applicable Caterpillar C9 marine engines is:
384-0678 / 3840678
The number may appear in either format when searching parts records or online catalogues.
They're the same reference:
384-0678 = 3840678
The associated Cat Reman reference is:
20R-1636 / 20R1636
So the relationship is:
384-0678 / 3840678
→
20R-1636 / 20R1636 Reman
That doesn't mean every engine carrying a C9 badge automatically takes this pump.
The engine arrangement still needs to be checked.
If you have 384-0678 or 20R-1636 on the pump removed from your engine, include that information with your enquiry.
Request a Caterpillar C9 HEUI pump quote.
What If the Pump on My Engine Has a Different Number?
Keep that number.
Don't throw the old pump away and don't assume the number must be wrong because it isn't the one you found in this article.
Caterpillar C9 engines exist across different applications and configurations, and there are other hydraulic injector pump references in circulation.
Your own installed component is valuable evidence.
Take a clear photograph of:
- Pump identification
- Engine identification plate
- Connections
- Complete installed pump if still accessible
Then send the number exactly as you found it.
Don't try to convert it into another Caterpillar number yourself.
What About 319-0678 / 3190678?
This is a good example of why C9 pump identification needs care.
Alfa Marine has 319-0678 / 3190678 listed in the catalogue as a Caterpillar Hydraulic Unit Injector Pump.
View Caterpillar 319-0678 / 3190678 Hydraulic Unit Injector Pump
But we do not automatically describe 319-0678 as the correct pump for a C9 marine engine.
Why?
Because seeing:
Caterpillar + HEUI pump
doesn't establish:
Caterpillar C9 marine compatibility.
If 319-0678 / 3190678 is physically installed on your engine or appears in your vessel's documentation, send us the engine serial number and arrangement number so the application can be checked.
This is exactly the type of situation where guessing from an online description can result in the wrong component being ordered.
New Pump or Cat Reman?
If your engine requires:
384-0678 / 3840678
you may also encounter:
20R-1636 / 20R1636
as the Cat Reman alternative for the applicable configuration.
From a purchasing point of view, the question often becomes:
“Do you have new or Reman?”
But there's a question that should come before that:
“Have we confirmed the correct pump?”
Identify the engine first.
Then compare applicable supply options.
Availability, vessel schedule, destination and core requirements can all influence the final choice.
When the Pump Gets Blamed Too Quickly
HEUI systems can produce frustrating faults because several components influence the same result.
The engine doesn't start.
Pressure looks wrong.
Someone decides the high-pressure pump must be finished.
A replacement is ordered.
It arrives.
The engineer installs it.
The engine still doesn't start.
Now everybody has the same problem plus a new pump.
Before condemning the pump, consider the complete pressure-control system.
Depending on the fault, diagnosis may involve:
- Hydraulic injector pump
- Injector-actuation pressure
- Pressure-control components
- Pressure sensor and signal
- HEUI injectors
- High-pressure oil leakage
- Wiring and connectors
- Engine oil supply
- Cranking speed
The point isn't to make diagnosis complicated.
It's to avoid turning diagnosis into expensive trial and error.
Could a HEUI Injector Cause Similar Trouble?
Yes.
The hydraulic pump and injectors aren't independent systems that happen to sit near each other.
They work together.
The pump has to provide the hydraulic pressure.
The injectors have to use it correctly.
A problem elsewhere in that hydraulic circuit can therefore influence pressure and engine behaviour.
If you're already investigating the HEUI system, don't look at the pump in isolation.
This is especially important on an older engine where the maintenance history isn't clear.
The Engine Starts — Then Runs Rough
Not every HEUI-related complaint is a complete no-start.
Sometimes the C9 starts but isn't happy.
It may run unevenly.
Response may be poor.
The problem may change as the engine warms up.
Again, don't use one symptom as proof of one failed component.
Look at diagnostic information.
Compare requested and actual operating values where appropriate.
Check whether there are fault codes.
Look at what changes between cold and hot operation.
A pattern is more useful than a guess.
If You're Removing the Pump, Photograph It First
This sounds trivial until you've had an unidentified pump sitting on a workshop bench.
Before removal, take a few photographs.
Get the identification number.
Photograph the connections.
Take a wider shot showing where it sits on the engine.
Then photograph the C9 identification plate.
Five minutes with a phone can save several emails later.
Once the pump is removed, cleaned, transported or sent away as a core, some of that context disappears.
What We Need When You Ask for a C9 HEUI Pump
You don't need to write us a long technical report.
A short message with useful information is better.
For example:
Serial number: XXXXXXXX
Arrangement: XXXXXXX
Existing pump: 384-0678
Quantity: 1
Vessel currently in: Dubai
Photo attached
That's enough to start a proper parts enquiry.
Compare that with:
“CAT C9 injection pump needed ASAP.”
We can work with the second message, but we'll probably have to come back and ask for most of the information above anyway.
If the vessel is waiting, that costs time.
A Few C9 HEUI Questions Worth Answering
My C9 has fuel but won't start. Can the HEUI system still be the problem?
Yes.
Fuel reaching the engine doesn't by itself mean the HEUI injectors have the hydraulic conditions required to operate.
Injector-actuation pressure is part of the starting process and should be considered during diagnosis.
Is 3840678 different from 384-0678?
No.
They're two search formats for the same Caterpillar reference:
384-0678 / 3840678
If that's the number on your existing pump, send it exactly as shown along with the engine details.
What is 20R1636?
20R1636 is simply 20R-1636 written without the hyphen.
It is the Cat Reman hydraulic injector pump reference associated with 384-0678 / 3840678 for applicable C9 marine configurations.
I found 3190678 online. Can I use that instead?
Don't make that substitution from the number alone.
319-0678 / 3190678 is a Caterpillar Hydraulic Unit Injector Pump in our catalogue, but its suitability for your individual C9 marine engine needs to be established from the engine application.
Send us the serial and arrangement information first.
Why does my C9 restart badly when hot?
A hot-start problem can involve changes in the high-pressure oil system as temperature and oil viscosity change.
That makes injector-actuation pressure worth investigating, but it still doesn't prove the pump itself has failed.
Should I change all the HEUI injectors when I change the pump?
Not simply because you're replacing the pump.
The decision should be based on the condition and diagnosis of the individual components.
Replacing good injectors doesn't fix an unrelated pressure problem.
Can you help if the pump number is unreadable?
Yes.
Send the C9 serial number, arrangement number and several clear photographs of the existing pump.
A photograph showing the complete component and its connections is often more useful than one extreme close-up of an unreadable label.
Need Help With a Caterpillar C9 HEUI Pump?
If you're sourcing:
384-0678 / 3840678
or the associated:
20R-1636 / 20R1636 Reman
send us the engine details before ordering.
If you have a different pump number, send that too.
Don't change or discard the number because it doesn't match what you've seen online.
Send Us Your C9 Details
Request a Quote
or email:
request@alfamarinespareparts.com
Ideally include:
Engine model
Serial number
Serial-number prefix
Arrangement number
Existing pump number
Quantity
Delivery destination
For other C9 components:
Caterpillar C9 Marine Engine Parts
For the wider Caterpillar range:
Caterpillar Marine Engine Parts & Rebuild Kits
You can also browse our:
Marine Spare Parts Catalogue
And if you're specifically checking 319-0678, see:
Caterpillar 319-0678 / 3190678 Hydraulic Unit Injector Pump
Alfa Marine Spare Parts can assist with Caterpillar C9 fuel-injection and HEUI-system component enquiries for marine repair, maintenance and overhaul requirements worldwide.
