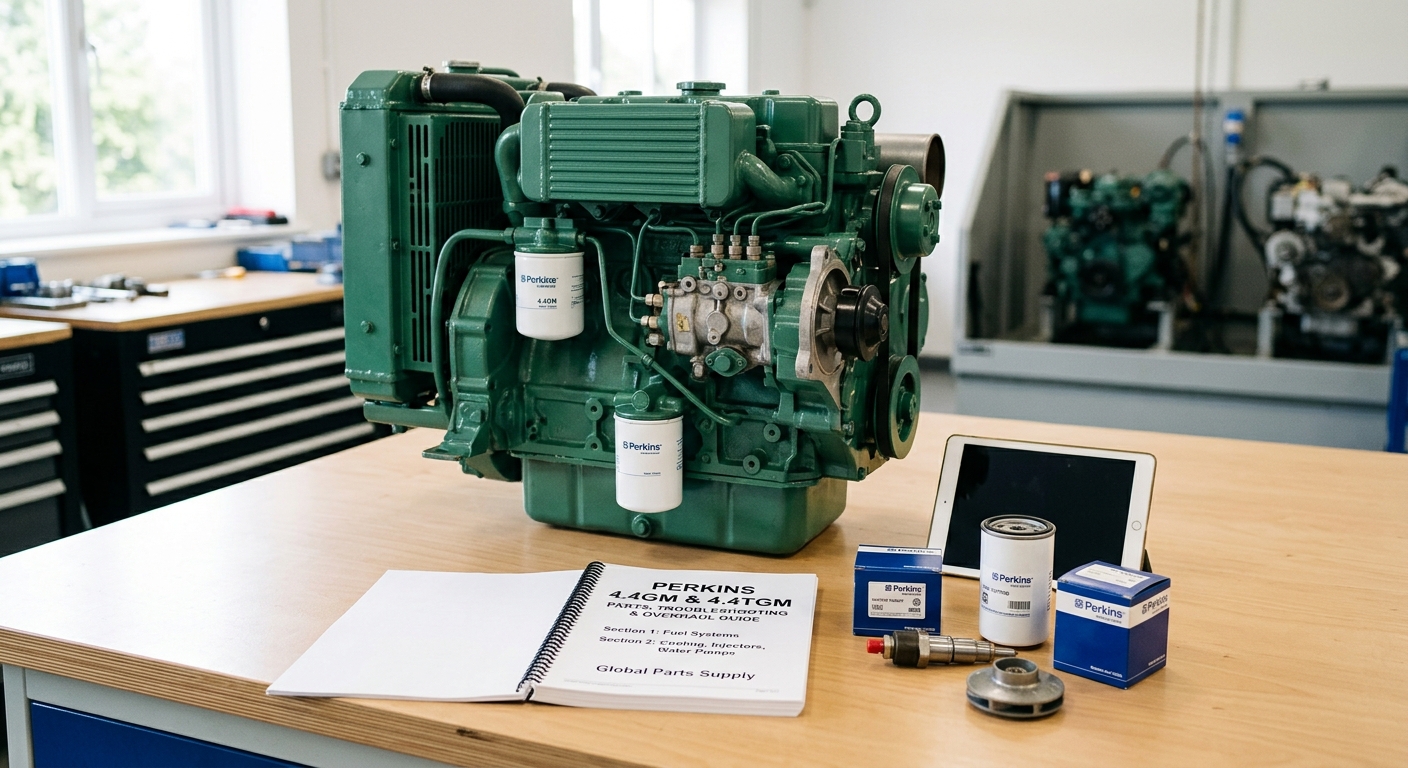

Perkins 4.4GM & 4.4TGM Marine Generator Parts: Troubleshooting, Maintenance & Parts Identification
A Perkins marine generator starts normally at the dock. The load comes on, everything looks fine—and then the temperature begins climbing.
Or perhaps the engine starts producing black smoke when electrical load increases.
Maybe the generator simply refuses to start after sitting for several weeks.
If you operate a Perkins 4.4GM or Perkins 4.4TGM, these symptoms do not automatically tell you which component needs replacing. They tell you where the investigation should begin.
That distinction matters.
Replacing an injector because an engine smokes, or ordering a water pump because an engine overheats, can become an expensive mistake when the actual problem is somewhere else in the system.
This guide explains how the Perkins 4.4GM and 4.4TGM marine generator engines work, what to check when problems appear, which parts are commonly required, and why the complete engine identification should be verified before ordering replacement components.
Alfa Marine Spare Parts supplies and sources Perkins marine engine parts for auxiliary engines, generator sets, yachts, workboats and commercial vessels.
For our wider Perkins range, visit our Perkins Marine Engine Parts page.
If you already have an engine serial number or part number, you can also Request a Quote.
What Are the Perkins 4.4GM and 4.4TGM?
The Perkins 4.4GM and 4.4TGM belong to the Perkins 4.4-litre marine auxiliary/generator engine family.
These engines are associated with marine generating-set applications where the diesel engine drives an alternator to provide electrical power aboard the vessel.
Perkins also documents related marine configurations including:
- Perkins 4.4GM
- Perkins 4.4TGM
- Perkins 4.4TWGM
- Perkins 4.4TW2GM
Although they belong to the same general engine family, that does not mean every component is interchangeable.
Cooling arrangement, turbocharging, engine build specification, generator installation and other equipment can affect the parts fitted to an individual engine.
This is why we recommend starting every parts enquiry with:
Complete engine model + engine serial number + existing part number
If the existing number cannot be read, send clear photographs of the component and engine identification plate.
Perkins 4.4GM vs 4.4TGM: What Is the Difference?
One of the first questions customers ask is:
“Can I use a 4.4GM part on my 4.4TGM?”
Sometimes a component may be shared across related engine builds. Sometimes it will not be.
The important difference is that the 4.4TGM is a turbocharged configuration, while the 4.4GM is the naturally aspirated version.
Turbocharging changes more than the presence of a turbocharger.
Depending on the engine build, differences can involve the air system, exhaust arrangement, manifolds, hoses, cooling components and associated hardware.
So if somebody sends us a request saying:
“Need water pump Perkins 4.4”
we still need more information.
Which 4.4?
Which build?
Which cooling arrangement?
What serial number?
What is the number on the existing pump?
Those questions are not unnecessary paperwork. They help prevent the wrong component from travelling halfway around the world to a vessel that cannot use it.
Perkins 4.4GM & 4.4TGM Troubleshooting
Let's look at some of the problems that actually lead owners, engineers and purchasing departments to search for Perkins 4.4 marine parts.
Perkins 4.4GM or 4.4TGM Overheating
When somebody tells us:
“My Perkins generator is overheating. I need a water pump.”
our first response should not be to assume the pump has failed.
An overheating problem can originate at several points in the cooling system.
Depending on the installation, inspection can include the:
Raw-water pump
Check the pump condition and impeller where applicable. A damaged impeller reduces seawater flow through the cooling circuit.
Raw-water inlet and strainer
Restricted seawater supply can produce symptoms similar to pump failure.
Heat exchanger
Internal deposits, marine growth, scale or restricted tubes can reduce heat transfer.
Thermostat
A thermostat that does not operate correctly can affect coolant circulation and engine temperature.
Hoses and connections
Collapsed hoses, leaks and restrictions should not be overlooked.
Coolant circuit
Coolant level, condition and circulation should also be checked.
So before replacing an expensive component, determine whether you actually have a pump problem, flow problem or heat-transfer problem.
That approach usually saves both time and money.
What Happens When a Raw-Water Pump Impeller Fails?
A flexible impeller is a relatively small component doing an extremely important job.
As the impeller rotates, its vanes move raw water through the marine cooling circuit.
Age, heat, dry running and normal wear can eventually damage the vanes.
A deteriorating impeller can therefore reduce water flow and contribute to rising engine temperature.
There is another point experienced marine engineers already know:
If pieces of the old impeller are missing, find them.
Fragments can travel farther into the cooling circuit and create restrictions.
Replacing the impeller without investigating where the missing pieces went may solve only half of the problem.
Perkins 4.4TGM Black Smoke Under Load
Now imagine another situation.
The generator runs reasonably well at light load.
More electrical load is applied.
Then you see black exhaust smoke and the engine struggles.
Black smoke generally indicates that the engine is receiving more fuel than it can burn cleanly with the available air.
That does not automatically mean the injectors are defective.
Start by considering the entire combustion process.
Possible areas requiring investigation can include:
- Restricted air supply
- Dirty or obstructed air filter
- Fuel-injection condition
- Injector spray quality
- Injection-pump condition or calibration
- Turbocharger performance on the 4.4TGM
- Exhaust restriction
- Engine load
- General engine condition
The turbocharger deserves particular attention on a 4.4TGM, but it should not automatically be condemned simply because black smoke is present.
Diagnose first.
Replace second.
Perkins 4.4GM / 4.4TGM White Smoke
White or light-coloured exhaust smoke is another symptom where replacing parts too quickly can become expensive.
During cold starting, white smoke can be associated with fuel entering the cylinder without burning completely.
Possible areas to investigate include cold-start conditions, injector condition, fuel quality, injection timing and compression.
Persistent white exhaust after the engine reaches operating temperature deserves further investigation.
Coolant entering the combustion chamber can also produce light-coloured exhaust symptoms, making it important to check whether coolant level is dropping or other cooling-system symptoms are present.
The lesson is simple:
Smoke colour is a diagnostic clue, not a complete diagnosis.
Perkins 4.4 Marine Generator Hard Starting
A generator that cranks but does not start can have a completely different problem from an engine that does not crank at all.
That distinction should be established first.
Engine does not crank
Check the electrical starting circuit, including the:
- Battery condition
- Battery cables and connections
- Starter motor
- Starter solenoid
- Relays and associated wiring
- Applicable switches and controls
Engine cranks but does not start
Now the investigation moves toward areas such as:
- Fuel supply
- Fuel filters
- Air entering the fuel system
- Injection equipment
- Fuel shut-off arrangement
- Engine speed during cranking
- Compression
- Applicable cold-start equipment
A new starter motor will not fix an engine that is already cranking normally.
Likewise, new injectors will not repair a failed electrical starting circuit.
Knowing what the engine is actually doing before ordering components is one of the easiest ways to avoid unnecessary parts replacement.
Perkins 4.4GM & 4.4TGM Fuel-System Parts
Marine generator engines depend on clean, correctly delivered fuel.
Water, sediment and contamination in vessel fuel tanks can eventually create problems upstream of the engine.
Common Perkins fuel-system requirements can include:
- Primary and secondary fuel filters
- Fuel lift pumps
- Injection pumps
- Fuel injectors
- Injector nozzles where applicable
- Fuel lines
- Seals and O-rings
- Fuel-system gaskets
- Related fittings and hardware
But this is another category where the existing part number matters.
Do not assume every Perkins 4.4GM or 4.4TGM uses exactly the same injector, pump or filter simply because the basic engine designation is the same.
Verify the individual engine first.
How Do I Find the Correct Perkins 4.4GM Part Number?
This is probably the most important section of the entire article.
Suppose the vessel needs a replacement cooling pump.
The purchase request says:
PERKINS 4.4TGM – WATER PUMP – 1 PC
That sounds straightforward.
It may not be.
Marine engines can exist in different build specifications and installations, and components can be superseded during the engine's service life.
Whenever possible, provide:
1. Complete engine designation
For example: Perkins 4.4GM or 4.4TGM.
2. Complete engine serial number
Send the complete identification exactly as it appears on the engine.
3. Existing part number
Look at the component itself, identification plate, packaging or previous maintenance documentation.
4. Part description
For example: raw-water pump, coolant pump, fuel injector, starter motor or gasket set.
5. Quantity
Especially important for overhaul and multi-engine requirements.
6. Photographs
A clear image of the engine nameplate and existing component can be extremely useful when identification is difficult.
Do not clean, discard or return the old component until identification has been completed if its markings may still be needed.
Common Perkins 4.4GM & 4.4TGM Spare Parts
Requirements naturally depend on engine hours, condition and maintenance history, but parts enquiries for marine auxiliary engines commonly fall into several groups.
Routine Maintenance Parts
These can include oil filters, fuel filters, air-system components, belts, gaskets, seals and other scheduled service items.
Cooling-System Parts
Typical requirements can include raw-water pump components, coolant pumps, thermostats, heat-exchanger components, hoses, seals and related cooling hardware.
Fuel-System Components
Depending on the engine specification, requirements can include injectors, injection equipment, lift pumps, filters, seals and associated components.
Electrical Parts
Starter motors, alternators, sensors, switches, relays and other electrical components may eventually require service or replacement.
Internal Engine Parts
For major repairs and overhauls, requirements can extend to pistons, piston rings, bearings, connecting-rod components, cylinder-head parts, valves, gaskets and seals.
You can browse these and other categories through our Marine Engine Spare Parts catalogue.
Should I Buy Genuine, OEM, Aftermarket or Remanufactured Perkins Parts?
There isn't one correct answer for every component.
For some critical applications, a customer may specify Genuine Perkins only.
For another repair, an appropriate OEM-quality replacement may be acceptable.
Certain expensive assemblies may also be available as remanufactured or reconditioned units.
What matters is knowing what you are actually being quoted.
“New” describes condition.
It does not automatically mean “Genuine Perkins.”
Likewise, aftermarket does not describe one universal quality level. The manufacturer, specification and application still matter.
When requesting a quotation from Alfa Marine Spare Parts, tell us if the vessel requires a specific supply condition.
For example:
Genuine required
or
OEM / aftermarket alternative acceptable
That helps us source the requirement correctly from the beginning.

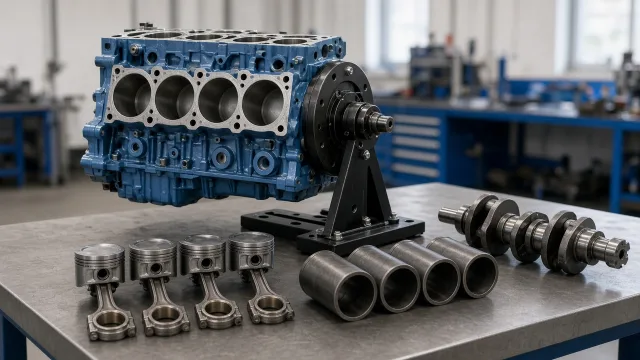

Planning a Perkins 4.4GM or 4.4TGM Overhaul
A planned overhaul is very different from an emergency request for one failed component.
Before ordering overhaul parts, establish exactly what work will be performed.
A requirement may include components such as:
- Pistons
- Piston rings
- Main bearings
- Connecting-rod bearings
- Cylinder-head components
- Intake and exhaust valves
- Valve guides and seals
- Gasket sets
- Oil seals
- Fuel-system components
- Cooling-system components
- Water-pump parts
- Thermostats
- Belts
- Filters
Do not build an overhaul package solely from a generic online list.
The correct parts should be matched to the individual engine identification and actual overhaul scope.
That becomes especially important when several generator engines are being serviced simultaneously.
Why Marine Generator Parts Identification Matters
A generator engine often gets less attention than the propulsion engines—until it stops.
Then it becomes urgent very quickly.
Commercial vessels depend on electrical power for essential onboard equipment, pumps, navigation equipment, communications, lighting, refrigeration, controls and other systems.
That is why planned maintenance and accurate spare-parts identification matter.
A relatively inexpensive seal, impeller, filter or sensor can become operationally important when the vessel is preparing to sail.
Keeping records of engine serial numbers and previously supplied part numbers can make the next maintenance requirement much easier.
Perkins Marine Parts for Marinas, Shipyards and Commercial Vessels Worldwide
Marine parts rarely need to stay in the same country where they were sourced.
A vessel may be operating in Miami today and crossing the Atlantic next month.
A yacht may need maintenance while berthed at a marina in the South of France.
A commercial vessel may require generator parts during a port call in England.
Alfa Marine Spare Parts supports international Perkins parts enquiries for marinas, shipyards, marine workshops, yacht-service companies, commercial vessels, workboats and fleet operators.
We arrange worldwide shipping to marine destinations including:
Miami and other U.S. ports, France, England and the wider United Kingdom, Spain, the Netherlands, Italy, Monaco, Portugal, Croatia, Dubai, the Middle East, Canada, Africa and other international destinations.
For urgent requirements, provide the vessel's current port or marina and required delivery date with your enquiry.
That allows the sourcing and logistics requirement to be considered together.
Frequently Asked Questions About Perkins 4.4GM & 4.4TGM Parts
What is the difference between a Perkins 4.4GM and 4.4TGM?
The 4.4GM and 4.4TGM are related Perkins marine auxiliary/generator engine configurations. The 4.4TGM is a turbocharged configuration, while the 4.4GM is naturally aspirated. Parts should still be verified against the individual engine identification before ordering.
Do all Perkins 4.4GM engines use the same parts?
Do not assume so. Engine build specification, installation and component revisions can affect the correct replacement part. Use the complete engine serial number and existing part number whenever available.
What should I check if my Perkins 4.4 generator is overheating?
Begin with the complete cooling circuit rather than immediately replacing the water pump. Check raw-water supply, strainer, pump/impeller condition where applicable, heat exchanger, thermostat, hoses, coolant level and circulation.
Why is my Perkins 4.4TGM producing black smoke?
Black smoke generally indicates incomplete combustion caused by too much fuel relative to available air. Air restriction, excessive load, injection problems, turbocharger performance, exhaust restriction and general engine condition are among the areas that may require investigation.
Can you supply Perkins 4.4GM and 4.4TGM injectors?
We can assist with fuel-injection component enquiries for Perkins marine engines. Send the complete engine identification and existing injector or component part number so the correct application can be checked.
Can you supply a Perkins 4.4GM overhaul kit?
Depending on the individual engine and availability, we can source overhaul requirements including pistons, rings, bearings, gaskets, seals, cylinder-head components and related maintenance parts. The engine identification should be supplied before an overhaul package is finalized.
Can you supply a Perkins 4.4TGM water pump?
We can assist with Perkins marine cooling-system and water-pump requirements. Send the engine serial number and the number visible on the existing pump whenever possible.
Do you supply genuine Perkins parts?
Depending on the component and availability, requirements can include genuine, OEM-quality, aftermarket, remanufactured or reconditioned options. If Genuine Perkins is mandatory, state this clearly when requesting the quotation.
Do you ship Perkins marine engine parts to Miami?
Yes. We arrange international shipping for marine parts requirements to customers, marinas, workshops and vessel operators in Miami and other U.S. marine locations.
Do you ship Perkins parts to France and England?
Yes. Alfa Marine Spare Parts supports international shipping requirements throughout Europe, including France, England/United Kingdom, Spain, the Netherlands, Italy, Monaco and other European marine locations.
Can you ship directly to my marina or shipyard?
Yes, depending on the destination and shipment requirements. Provide the complete marina, shipyard, vessel agent or delivery address when requesting your quotation.
Request Perkins 4.4GM & 4.4TGM Marine Engine Parts
Need Perkins 4.4GM or Perkins 4.4TGM marine generator parts?
Send us as much information as possible:
Engine model:
Engine serial number:
Existing part number:
Part description:
Quantity:
Required condition: Genuine / OEM / Aftermarket / Reman
Vessel name:
Current port or marina:
Delivery destination:
If the part number is unknown, include clear photographs of the engine identification plate and existing component.
Whether the requirement is a routine service kit, water pump, injector, starter motor, cooling-system component or a larger engine-overhaul package, accurate identification comes first.
Email: request@alfamarinespareparts.com
Request a Quote
You can also browse our complete Perkins Marine Engine Parts range or explore Marine Engine Spare Parts by component category.
Worldwide shipping available for marinas, shipyards, yacht-service companies, commercial vessels and marine-engine workshops.
